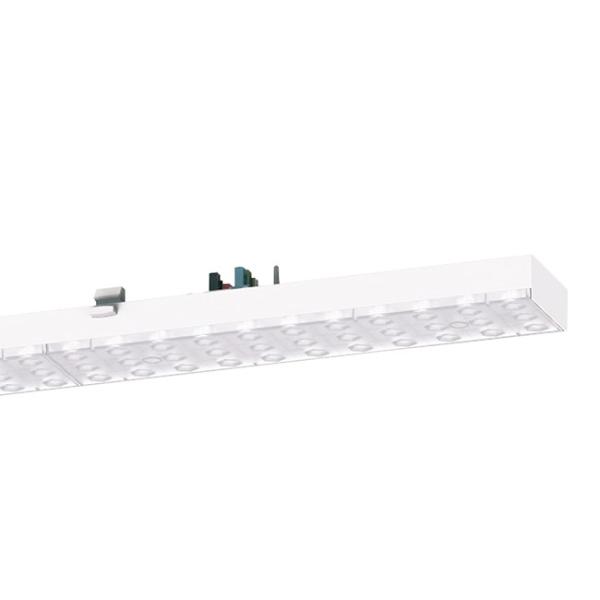

11000lm Linear Track Lighting 5ft DALI Dimmable Aluminium Housing

Model Number : RSL5S5-68-T4

Certification : ENEC, CE, RoHS, CB

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Payment Terms : T/T, L/C, Paypal

Supply Ability : 20,000 Pieces per Month

Delivery Time : 3-5 working days for sample, 7-15 working days for mass production

Packaging Details : 8pcs per carton(159*29*22cm)

Input Voltage : 220-240V AC/DC

LED : SMD2835

Input Frequency : 50 or 60 HZ

Lifetime : 50,000(L80B10)

Power Factor : >0.95

Beam Angle : 30°/60°/90°/25°/15°/120°

Switching Cycles : 100,000 times

CRI : Ra>80 or Ra>90

Protection Class : Safety class I

UGR : <23

Driver : Tridonic

SDCM : <5

Luminous Efficacy : 160lm/w

Flicker Free : Yes

Emergency : 4W 3H

Dimmable : DALI

Material : Aluminum+PMMA

Warranty : 5 Years

Contact Now

5ft DALI dimmable max 11,000lm white housing aluminium Led Linear Lighting System

Datasheet for LED module:

Item	Model NO.	Watt	Lumen	Efficacy	Function	EEC	*LWH(mm)*
1	RSL5S5-68-T4	Max 68W	10,500lm	160LM/W	DALI	A++	*14386527*

Maximum Loading:

	RSL5S5-68-T4
B10	13
B16	21
C10	21
C16	35

Datasheet for trunkings:

Item	Model NO,	Wires(mm²)	Dimensions(mm)	Weight(KG)
1	TKA5-07W-00	7 x2.5 mm²	1438x 65 x 65	1.65
2	TKA5-11W-00	11 x2.5 mm²	1438x 65 x 65	1.95
3	TKA9-07W-00	7 x2.5 mm²	2876x 65 x 65	2.98
4	TKA9-11W-00	11 x2.5 mm²	2876x 65 x 65	3.25

Accessories:

11000lm Linear Track Lighting 5ft DALI Dimmable Aluminium Housing

FAQ:

Q1. What's the dimming range for the product?
A: We can do 0-100% dimming and 30-100% dimming.
Q2. What about the lead time?
A: Sample order: 3~5 working days Bulk order: 20~30 working days after deposit/ full payment, it will depend on the quantity.
Q3. Can I use another branded driver for this linear light?
A: We can also use DALI driver, power range is 20W-68W, the same with Tridonic driver.

For more information, welcome to visit our website www.recolux.com.

RSL5S5-68-T4
